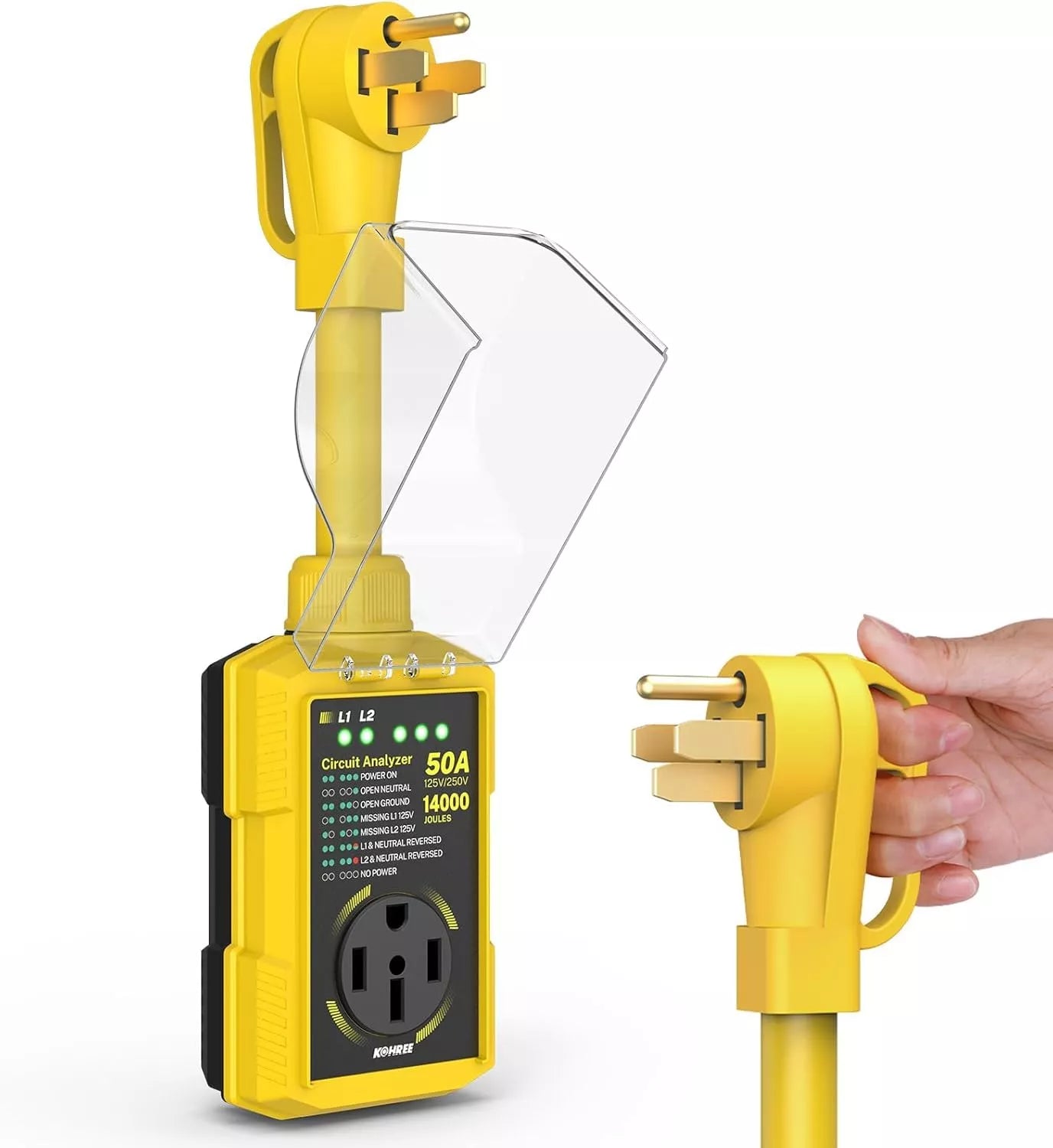

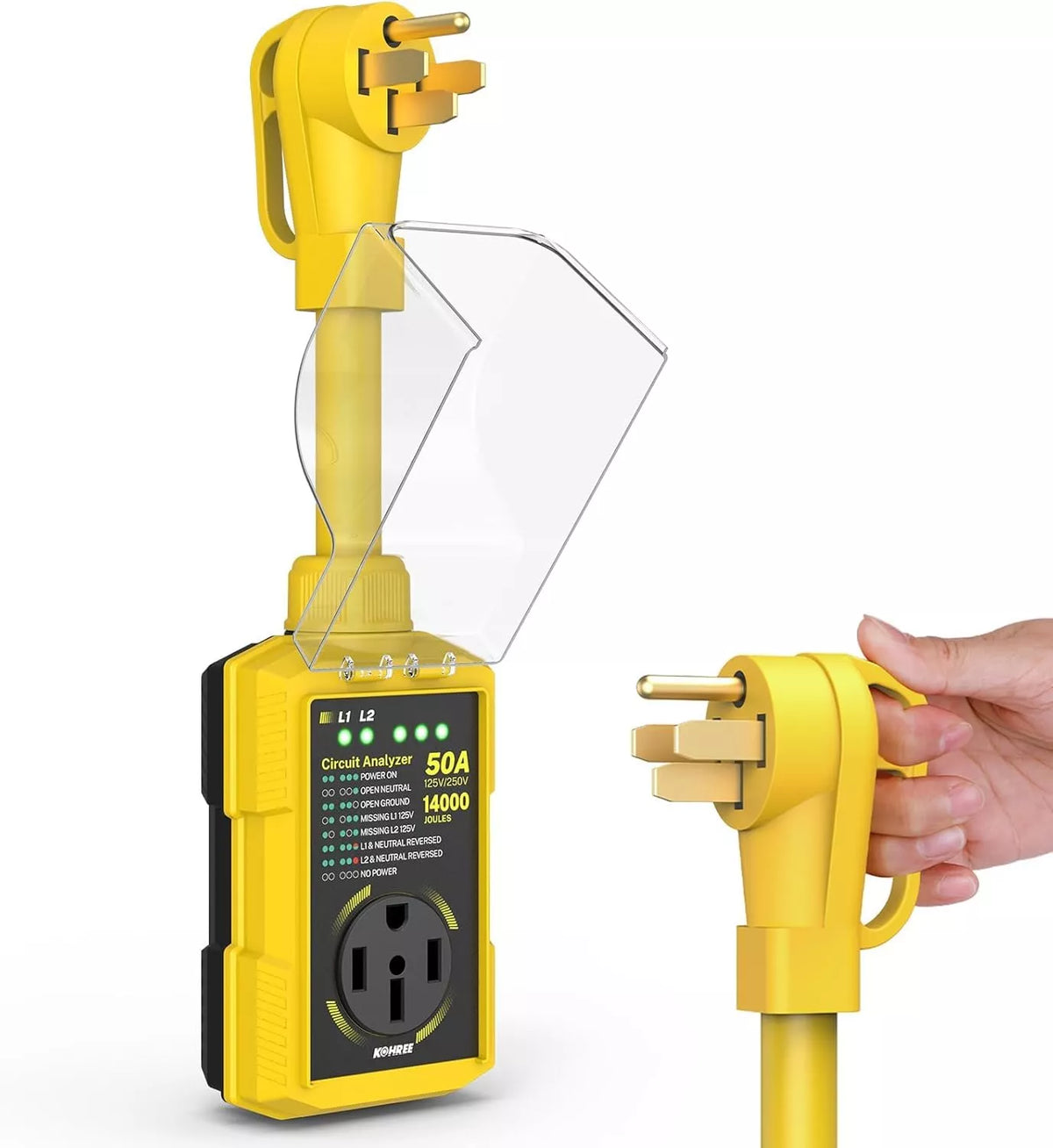

RV Surge Protector 50 Amp with LED Indicator Circuit Analyzer

SKU: KR6491B

$59.99

Color: Upgraded

5-7 Days Fast Free Shipping

Free 30-Day Returns

12-Month Warranty

Product description
Specifications
Request Bulk Quotes

Kohree RV surge protector 50 amp around a campfire and caravan.

  • Professional-Grade Circuit Analyzer: Instantly verify campground power safety with clear LED diagnostics. Detects critical wiring faults—including Open Ground, Reverse Polarity, Open Neutral, Hot/Ground Reverse, and more—before they damage your RV’s electrical system or appliances.

    Kohree rv surge protector 50 amp with electric circuit analyzer

  • Industry-Leading 14000 Joules Protection: Engineered for large Class A motorhomes and high-power setups, this unit absorbs dangerous voltage surges within 1 nanosecond, offering superior defense against lightning strikes, grid fluctuations, and faulty pedestals.

    Surge protector 50 amp for rv with features highlighted

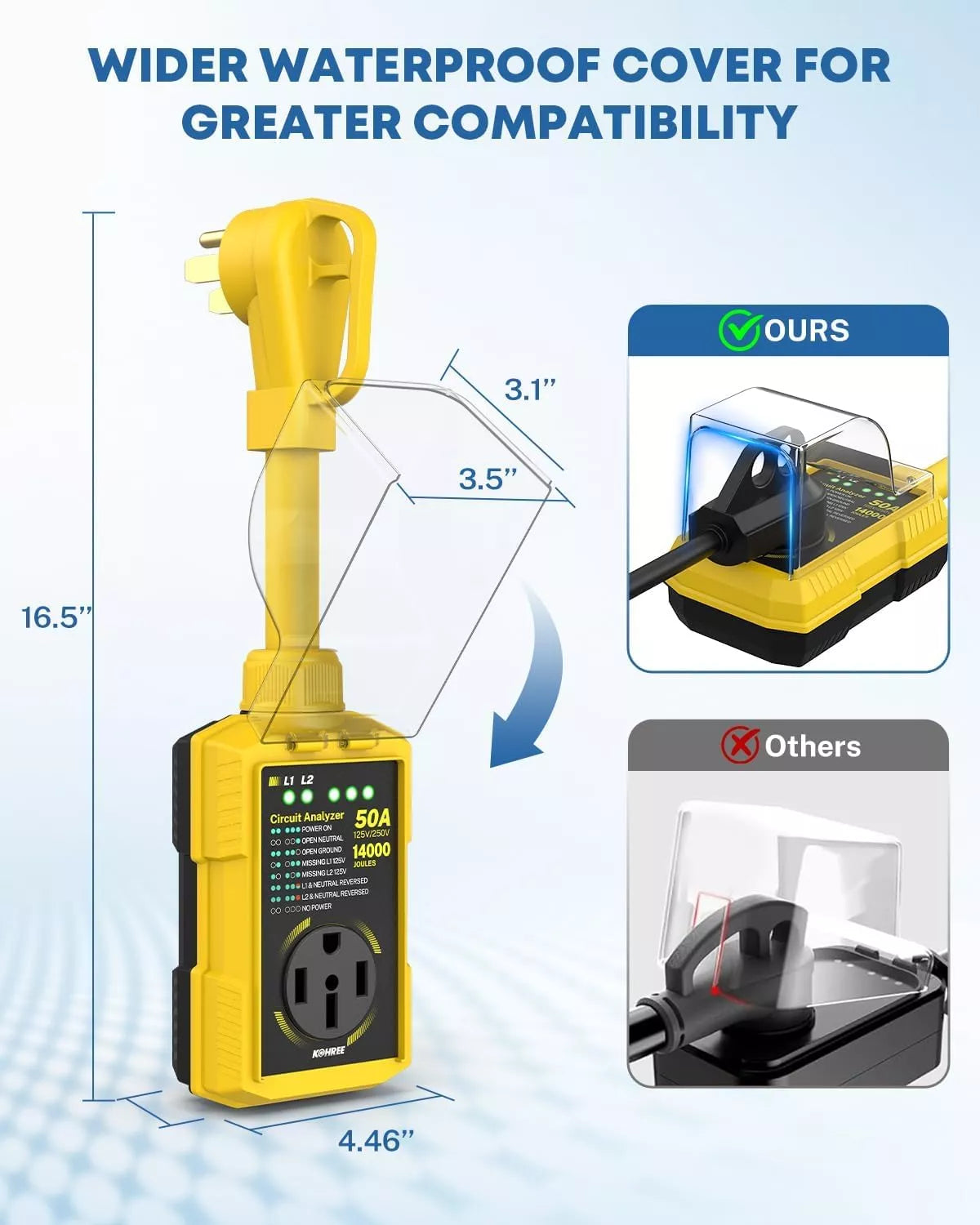

  • IP67 All-Weather Durability: The rugged housing and oversized IP67-rated waterproof cover shield internal components from rain, snow, dust, and debris. Designed to prevent short circuits and fire hazards, even in harsh outdoor environments.

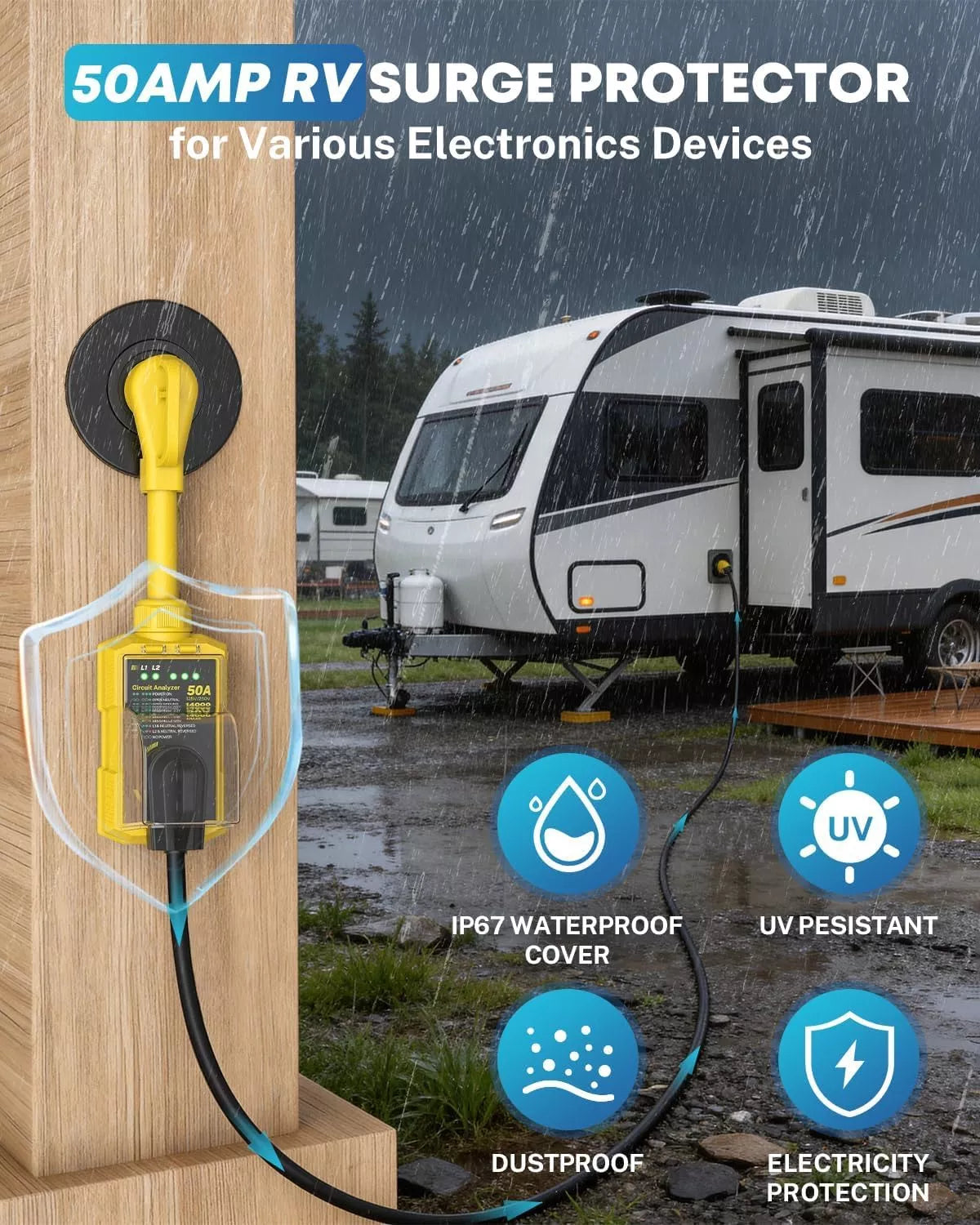

    Electrical surge protector with icons of electronic devices it protects

  • Patented Ergonomic Build: Backed by U.S. Design Patents (US D1,050,045 S and US D963,583 S), it features a right-angle male connector to reduce cord strain and ergonomic grip handles for safe, tool-free plugging—even with gloves on. Built with flame-retardant housing, pure copper conductors, and high-strength PVC for long-term reliability.

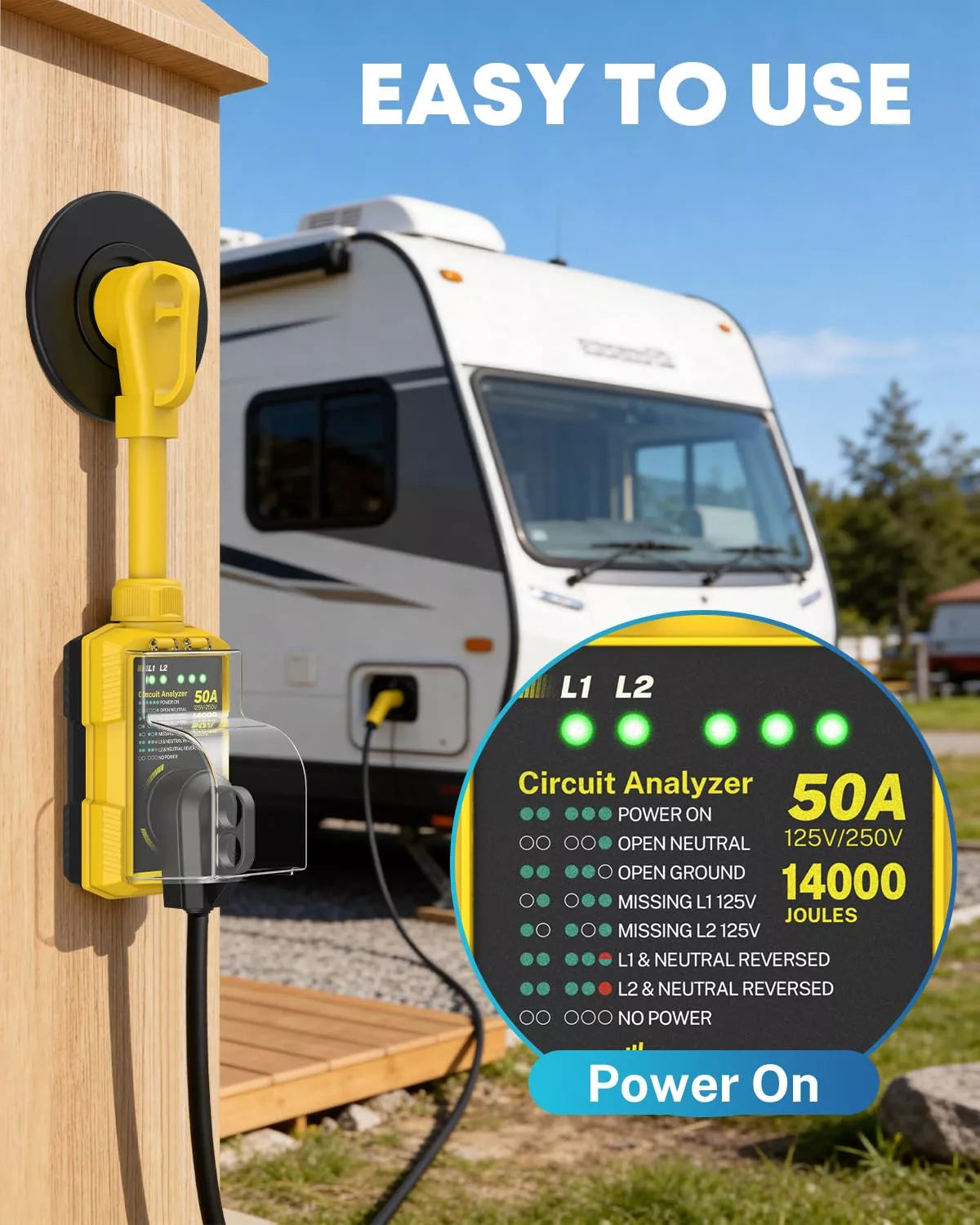

    Step-by-step guide on using a surge protector with circuit analyzer for RV charging.

  • Tip: Always plug the surge protector into the campground pedestal first and wait 5 seconds for the LEDs to stabilize before connecting your RV. The 14000J rating is ideal for full-time RVers or those running dual AC units, washers, or high-draw appliances. Store it in your compartment with the waterproof cover snapped shut to extend its lifespan.

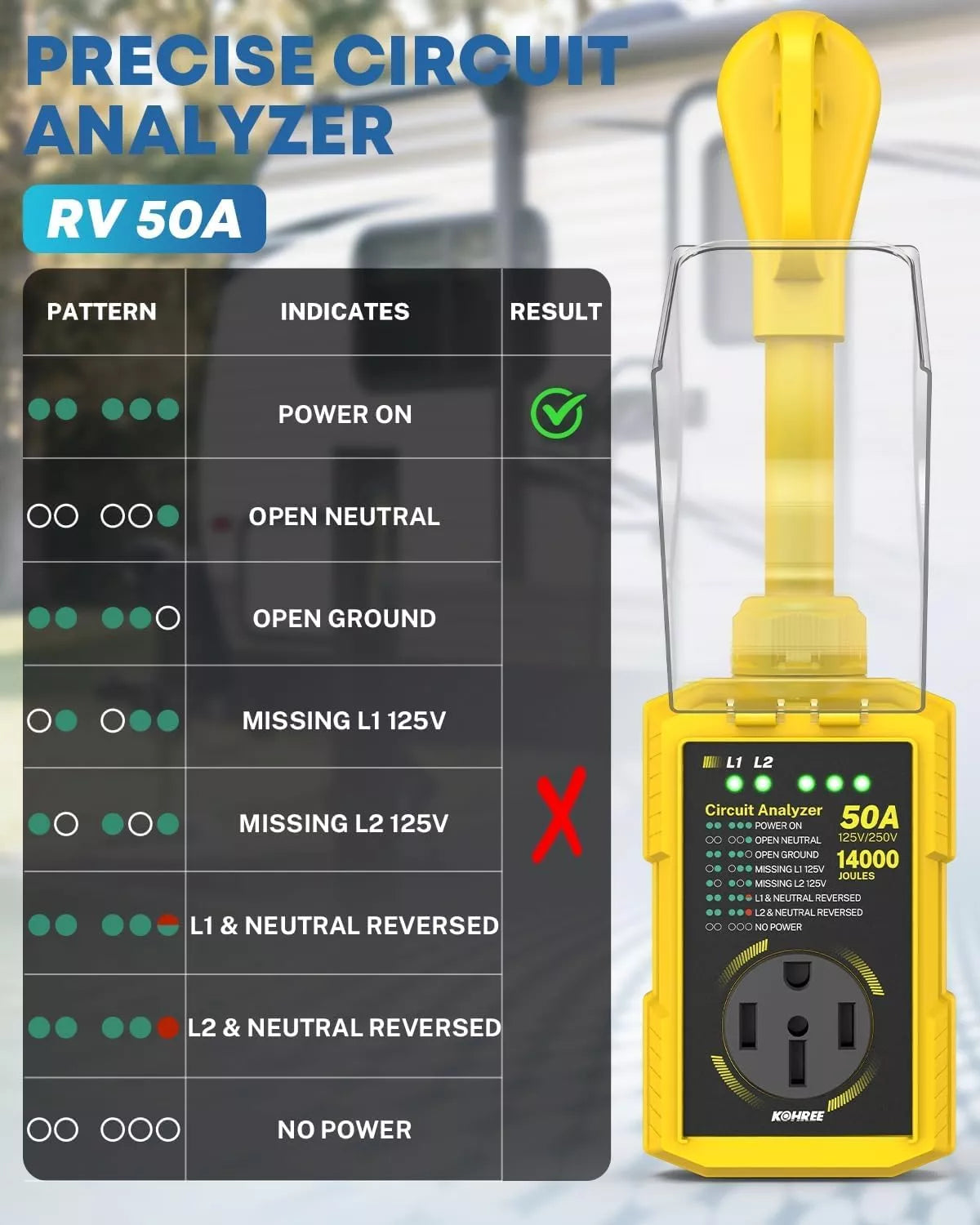

    50 amp rv surge protector with circuit analyzer with wiring LED indicators and circuit analysis diagram

Surge Protection Rating: 14000 Joules / 45,000A max spike.

Input Ratings: 50A / 125V / 6250W; 50A / 250V / 12500W.

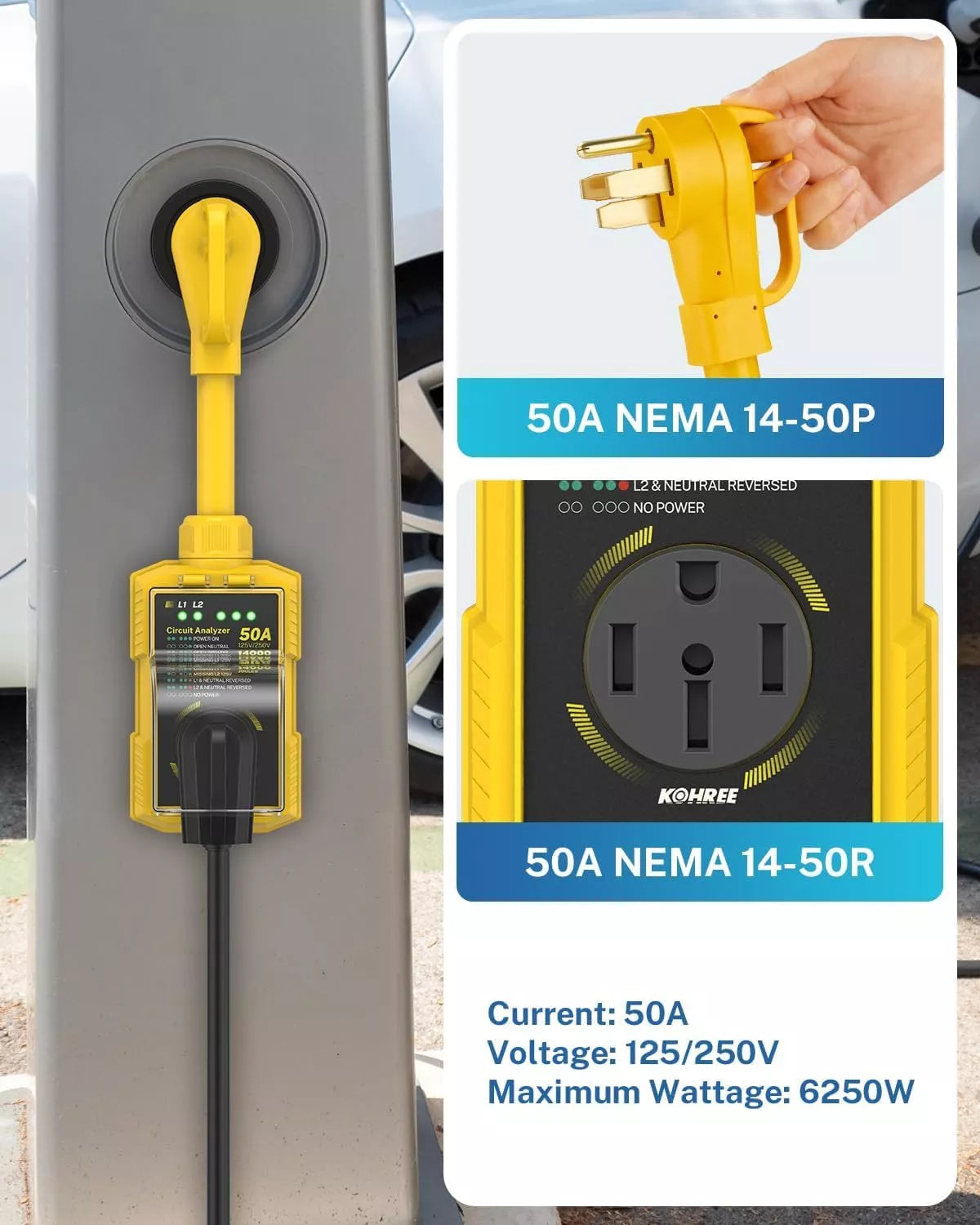

Plug Type: NEMA 14-50P / NEMA 14-50R, 4 Prong.

Material: PVC + Circuit components + Copper.

Response Time: <1 ns (10⁻⁹ second).

Operating Temperatures: -35 ℃ to +110 ℃.

Need to purchase more? Please contact: frank@kohree.com

FAQs About RV Surge Protector 50 Amp with LED Indicator Circuit Analyzer

This 50 amp circuit analyzer is an effective method for verifying if the power source is correctly wired and for detecting most wiring faults. Diagnostic LEDs on the trailer surge protector indicate various faults, including Power On, Open Ground, Open Neutral, Missing L1 125V, Missing L2 125V, L1 & Neutral Reversed, L2 & Neutral Reversed, and No Power.

Yes, the Kohree 50 Amp Surge Protector can detect open grounds and open neutrals. If the diagnostic LEDs indicate Open Ground or Open Neutral, it means there is a wiring fault in the power source.

Yes, this 50 amp camper surge protector has an IP67 waterproof rating, making it resistant to all weather conditions. This means it can be used safely outdoors without fear of water damage. Its spacious design accommodates various RV power plug sizes, including those with handles, while keeping moisture out, ensuring uninterrupted power supply during rainy days.
